Physics & Simulation

Drop, stack, collide, weld and throw. ThePrototype has a real-time rigid-body simulation (Rapier) you can start at any moment — objects fall, pile up and knock each other over, and everyone in the session watches the same run.

The simulation is not always on: you set up which objects have physics, then press play. Stopping leaves the result in place as a single undoable step.

Giving an object physics

There are two ways to make an object participate, and they combine.

From the Inspector

Select an object and open its Physics section in the Inspector. Body is the first choice:

• Auto (scenery) objects act as static obstacles the simulation can land on (the default).
• Dynamic objects fall and collide; give them a Mass (0.1–100, default 1).
• Static never moves.

The rest of the section — the collider shape, the material (bounciness and friction), sensors, locked axes and Show collider — is described on its own page: Colliders. In short: the collider shape is inferred from the object (a sphere rolls, a ramp is a ramp), a Sensor stops colliding and fires On Enter / On Exit instead, and every one of these settings can be changed while the simulation runs. A dynamic object can also float in water.

To give a whole selection physics at once, Configure Scene ▸ Physics lists every object that will get a body (dynamic · 1 kg, static, collider only; click a row to select it) and has an Enable physics on selection button that makes the selected objects dynamic.

Scene settings

Everything in Configure Scene ▸ Physics is shared with your peers, saved with the scene and applied live — you can change any of it mid-run.

World

Gravity slides from −20 to 5 (Reset gravity puts it back). Drop the world into moon gravity mid-run, or invert it: positive values make things fall up.

Time scale (0.1–2) runs the whole simulation in slow motion or fast forward. Slow-mo on a collapsing tower is the point of it. Above 1.5 the panel suggests turning on continuous collision, because faster bodies travel further between steps.

Ground & bounds

A ground plane is on by default at height 0. You can move it, give it grip (friction) and bounce (restitution) — a slick floor and a rubber floor are one slider apart — or switch it off entirely to build a pit. With colliders shown (Configure Scene ▸ View ▸ Show colliders) it draws as a translucent sheet so you can see where it is.

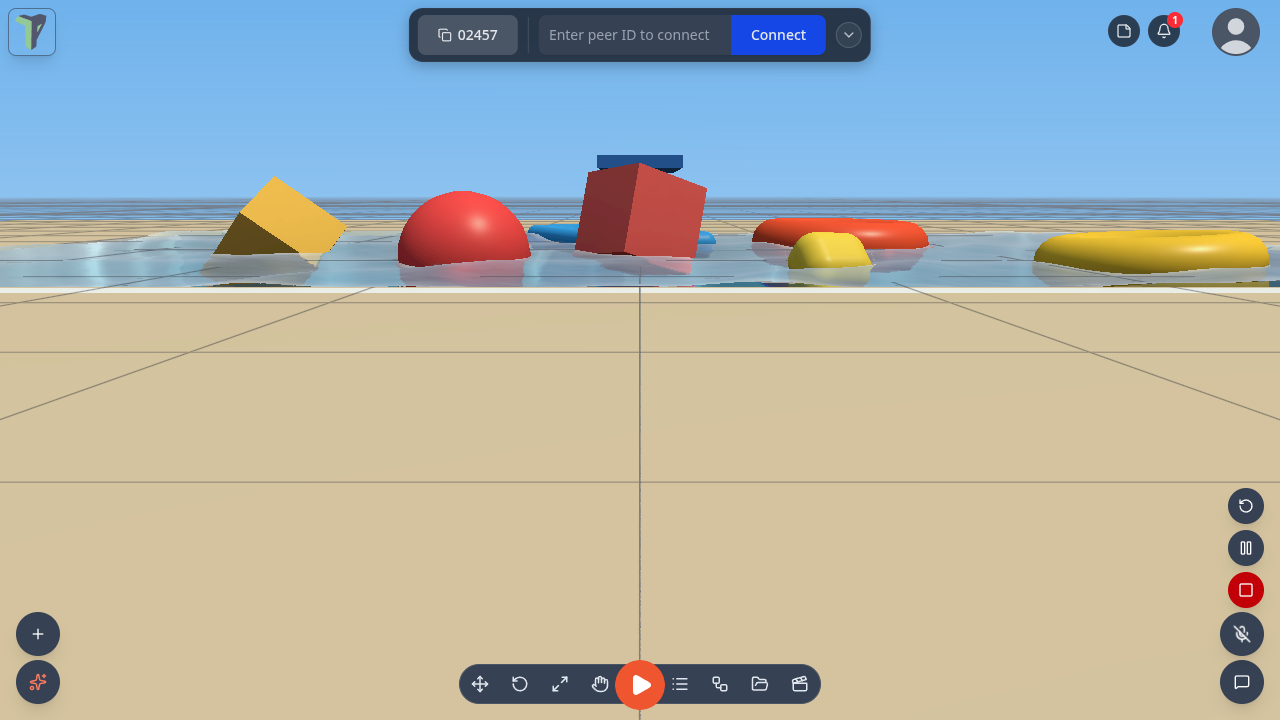

Since 1.25 the ground has a hole wherever water goes below it, with a floor at the bottom of the pool or tank — so a pool sunk into the ground works, and nothing rests on an invisible lid at the water's surface.

Out of bounds below Y catches anything that falls past a limit, and you choose what happens:

Action	What it does
Return to its start	teleports the object back to where it was when the simulation started — right for a crate knocked off a table
Freeze in place	stops it dead where it is
Delete the object	removes it, replicated and undoable

One toast reports a whole burst ("3 objects fell out of bounds — returned to spawn") rather than one per object.

Defaults (advanced)

Material fills in friction and bounce for every object that does not set its own — the fastest way to make a whole scene icy, rubbery, wooden or metallic. Drag and spin drag (linear and angular damping) are what turn a jittery tower stable and stop crates sliding forever. Continuous collision is off by default and costs a little speed; thrown objects switch it on for themselves regardless, because a 20 m/s throw travels 0.33 m per step and would otherwise pass through a thin wall.

Primitives are ready to play

Newly added primitives (cube, sphere, stairs…) come with a Dynamic body (mass 1) out of the box — add a few, press P, and they fall, stack and throw immediately. Building scenery instead? Set Body back to Auto or Static in the Inspector. Terrain always spawns as scenery.

With Mass / Bounciness / Friction nodes

The flow graph can drive the same properties: wire a Mass, Bounciness or Friction node into an Object Selector. A wired Mass node makes its object dynamic. Node values override the Inspector settings for that object.

Note

Physics properties are not animated per frame like Spin or Bounce: they are applied when the simulation starts, and re-applied live whenever you change them mid-run — mass, material, collider, sensor and locked axes swap in place. Only switching an object's Body (Auto / Static / Dynamic) waits for the next run.

Running a simulation

You can start and stop the sim three ways:

• Press P — toggles the simulation.
• Right-click the viewport ▸ Tools ▸ ▶ Simulate physics (the same entry becomes ⏹ Stop simulation, and Pause / Reset appear while it runs).
• The Simulation controls HUD — a small transport at the bottom-right, if you've enabled it (see below).

While running, dynamic objects fall under gravity and collide; Reset restores the initial layout without an undo entry, Pause/Resume freezes the sim, and Stop ends it — after which Ctrl+Z restores the layout you started from.

If nothing has physics when you press play, the app helps you out: with an object selected it simulates just that object at mass 1 and tells you "No Mass nodes wired — simulating the selected object with mass 1"; with nothing selected it prompts you to wire a Mass node or select something first.

The simulation controls HUD

The bottom-right transport (▶ / ⏸ / ⏹ / ↺) is off by default so it isn't confused with the main play button. Turn it on in Settings ▸ Scene ▸ Simulation controls. The P shortcut works whether or not the HUD is visible; the first time you use P while it's hidden, a toast reminds you where to enable it.

In a scene that has Start simulation on load on, the transport is always there. Since 1.25 it drives the whole simulation: Pause holds everything still — the bodies, the fluid tanks, fluid emitters and the pouring and spilling drops — on every player's screen, and Reset puts the whole scene back to how it opened (bodies, tanks refilled, drops gone) and plays it again.

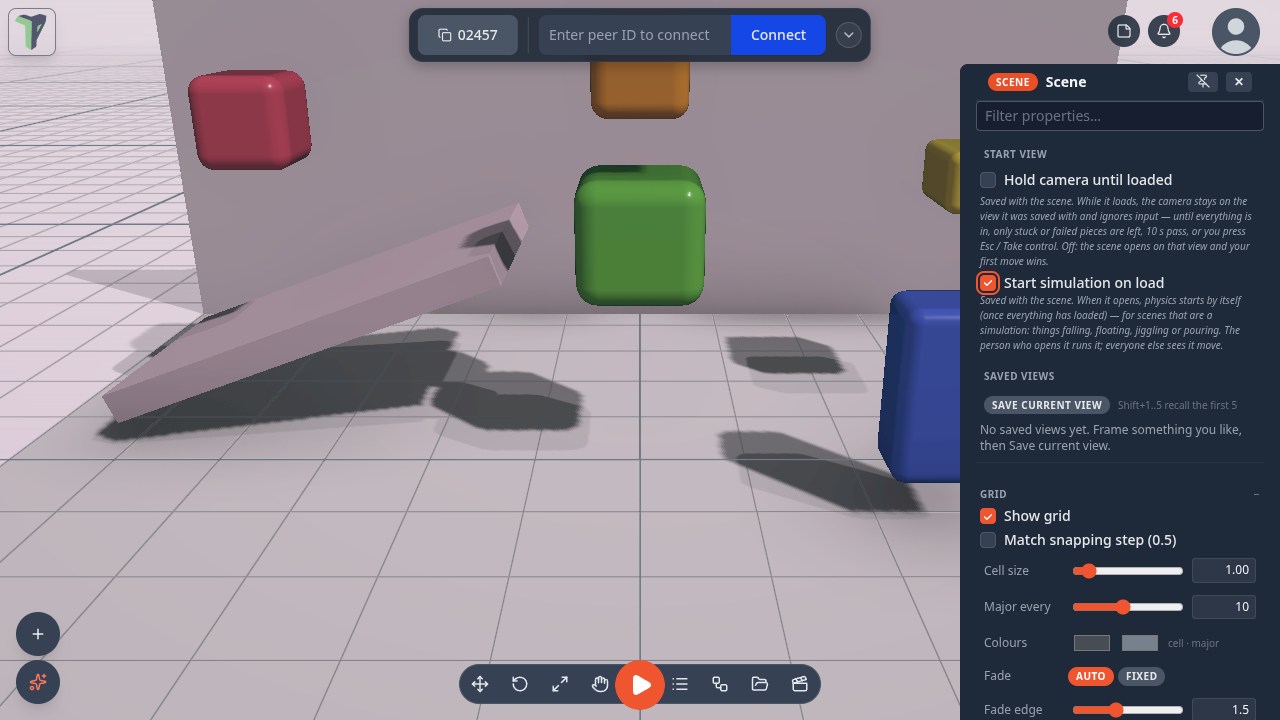

Start simulation on load

Configure Scene ▸ Camera ▸ Start view ▸ Start simulation on load is for scenes that are a simulation — things falling, floating, jiggling or pouring. It is saved with the scene: when the scene opens, physics starts by itself once everything has loaded. The person who opens the scene runs it; everyone else sees it move. It also applies to exported games and play links, and undo / redo work on it like on any edit. Jelly room, Fluid tank toy, Pool party and Island ocean have it on.

Grab and throw mid-simulation

While a simulation is running you can grab a dynamic object and throw it:

• Play mode — enter play mode, put the crosshair on the object and hold the left button. It comes to you and follows the camera; scroll to push it further away or pull it closer; let go to throw. See below.
• Desktop editor — drag it with the move gizmo. Releasing hands it back to the physics engine with the velocity of your throw.
• Interact mode — press on it and drag, with a finger or the mouse; see Carrying things in Interact.
• VR — grip-grab it and let go; the release imparts the throw.

Throw speed is capped at 20 m/s, and the cap applies to the magnitude, so a hard diagonal throw goes where you aimed it rather than being bent toward an axis.

Carrying things in Interact

With a simulation running, press on a dynamic object in Interact mode and drag: the object is held at the exact point you touched and moves with your finger or cursor, at the same distance from the camera — near or far — so it no longer jumps toward the camera when you take it. Let go while still moving to throw it; a slow release puts it down. Throws from Interact are capped at 8 m/s. With a mouse, the wheel pushes the held object away or pulls it closer. A second finger never drags the held object.

Play mode is interact mode

In play mode the crosshair grows into a ring over anything you can pick up.

• Hold the left button to carry. The object follows a smoothed target in front of the camera, so a heavy crate lags behind a light one — mass you can feel.
• Scroll while carrying to push it out or pull it in (0.8–6 m). Your walking speed is untouched while you hold something.
• Let go to throw it with the speed you were actually moving it at.
• A quick tap — press and release without dragging — clicks the object instead, which fires On Click nodes and module buttons. Before this, play mode had no clicking at all.

Only dynamic objects can be picked up, objects another peer has locked are refused, and nothing is grabbable unless a simulation is running — so scenery and level geometry can never be dragged out of place.

Configure Scene ▸ Play sets this for everyone in the scene (since 1.30 it is its own section; before, it was Physics ▸ Play mode):

Setting	Meaning
Pointer: Grab and throw	the full behaviour above (default)
Pointer: Click only	taps fire On Click nodes, nothing can be picked up
Pointer: Look only	neither
Limit grab reach · Reach (m)	off by default; when on, you can only pick up objects within this distance of your body (0.5–5 m, 1.3 when switched on) — Towers uses it so high pieces need steps
Flying	Off (default) / Allowed / Removed — see Flying
Start the simulation when play mode opens	for scenes that are games rather than models
Playing banner	while you play, a small bar at the top says Playing · Press Esc to stop (with a Stop button). Show (default), Hide (also on a phone), or Custom — your own words, up to 80 characters. In a game it says Press Esc for the menu and the game's Menu · Esc button stays. Since 1.30
Spawn point	where desktop play starts. Set to the view's focus stores the point the view orbits around, facing the way the camera looks at it; Clear removes it

A module can override these for its own world by publishing them on its scene group.

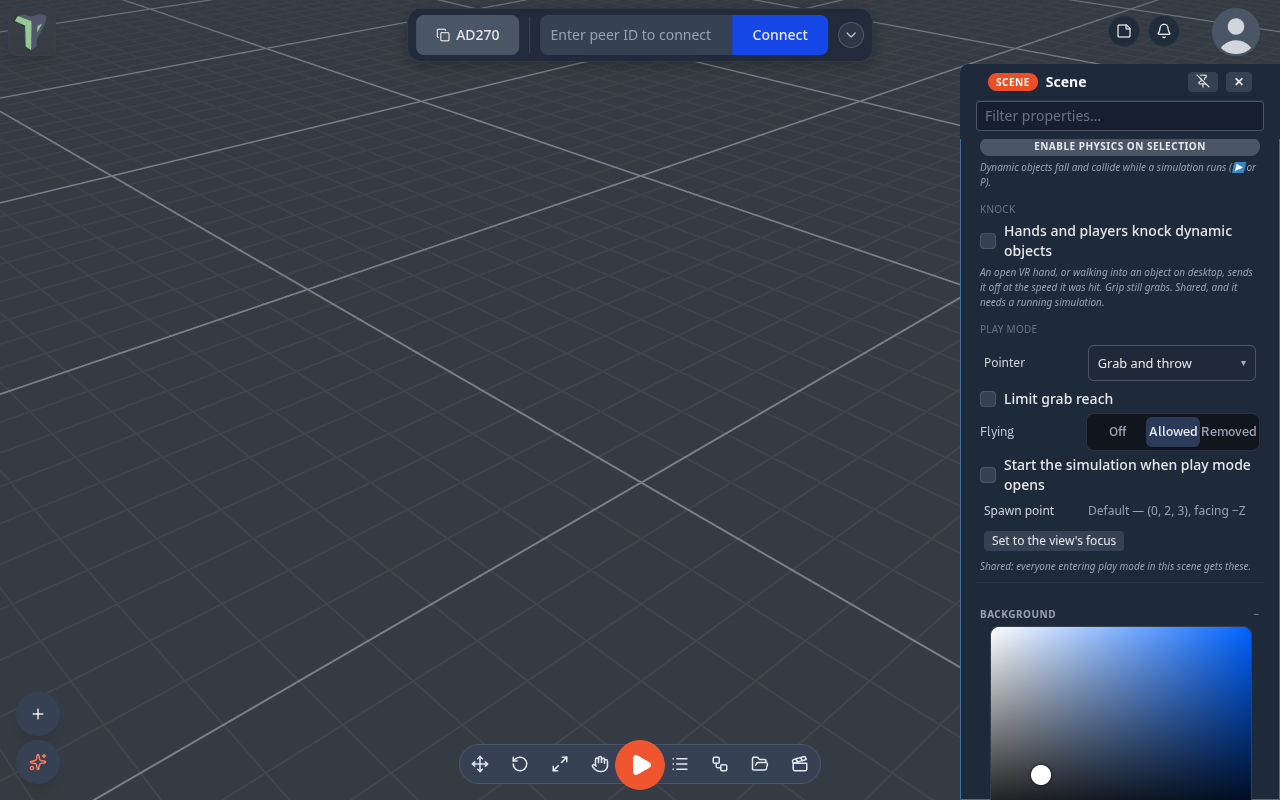

Flying

Since 1.26 players walk in Play unless the game allows flying. (Before, every scene without Keep players on the ground ticked flew on a desktop.) Configure Scene ▸ Play ▸ Flying:

Choice	What it means
Off (default)	players walk; the camera stays at eye height. A game module may still allow flying
Allowed	Q / E on a desktop, the Up / Down touch buttons, and in VR Interact, flying with the stick along where the controller points
Removed	nobody flies in this scene, even if a game module or a Character Controller node in fly mode asks for it

Of the bundled games, the Jam Room flies (it is designed for VR flying), and Dungeon Realms does when its Game Rules ▸ disableFlight is off; every other game walks. A module allows flying with userData.play.locomotion.fly = true (or by un-grounding play), and a Character Controller node in fly mode counts as allowing it. The editor's free-fly — WASD + Q/E, and flying in VR Edit — is unchanged.

The knock

Hit a floating object with your hand and it flies off. In VR your two hands are the probes; on desktop it is the camera you walk with, so walking into something shoves it. The object leaves at the speed you hit it, and everybody sees the same result — the hit travels as one exact velocity message, the way a throw already does.

It is off in every scene that does not ask for it. A scene with no Knock block behaves exactly as it always did: hands grip and grab, the crosshair carries and throws, and nothing is knocked by walking into it. Switch it on in Configure Scene ▸ Physics ▸ Knock:

Row	Range	What it does
Hands and players knock dynamic objects	off by default	arms the whole thing for the scene, for everyone
Gain	0 – 5	multiplies the speed the object leaves at. 1 is "as hard as you hit it"
Max speed	0.5 – 20 m/s	the ceiling, whatever you do. Keep it low to keep a ball hittable rather than lost
Probe radius	0.02 – 1 m	how big the hand (or head) is as a ball. Wider is easier to connect with, and easier to hit by accident
Spin	0 – 2	how much of the hit becomes rotation instead of travel

The panel says the rest out loud: An open VR hand, or walking into an object on desktop, sends it off at the speed it was hit. Grip still grabs. Shared, and it needs a running simulation.

Three things have to be true before anything is knocked: the scene's Knock block is on, a simulation is running somewhere, and you are in play (pointer lock on desktop, or presenting in VR). Only Dynamic bodies can be knocked, and an object somebody is carrying is left alone rather than fought over. The settings are scene data: they replicate, save and undo like everything else in Configure Scene.

In VR the hand that connects gets a short buzz, harder for a harder hit. That part is local — it is your hand, not a message.

The knock as a game

Menu ▸ Templates ▸ Games ▸ Stars Room is a zero-gravity room built on this: twenty-four stars and two planets to knock about, a chime when one is hit, and a start screen with Start round (light every star in two minutes) or Free play. Nothing to install.

To react to a knock in a graph, use the On Hit node: it gives you how hard (speed) and whether it was you (by me).

Things float (buoyancy)

Drop a dynamic object into water while a simulation runs and it floats, sinks or drifts. The water pushes it up by as much water as it displaces, slows it down, carries it along in its flow (the River preset), and tips it back upright. Hitting the surface makes a ripple.

Since 1.25 that works wherever the object starts: put it anywhere in a pool, a tank or the ocean and press P (or open a scene with Start simulation on load) — a light thing (foam, a beach ball) shoots up and bobs at the surface, wood floats lower, a stone sinks to the bottom. Properties ▸ Water ▸ Flow & physics on the water adds Flow up (an upward current) and Bob damping (lower = things keep bobbing longer).

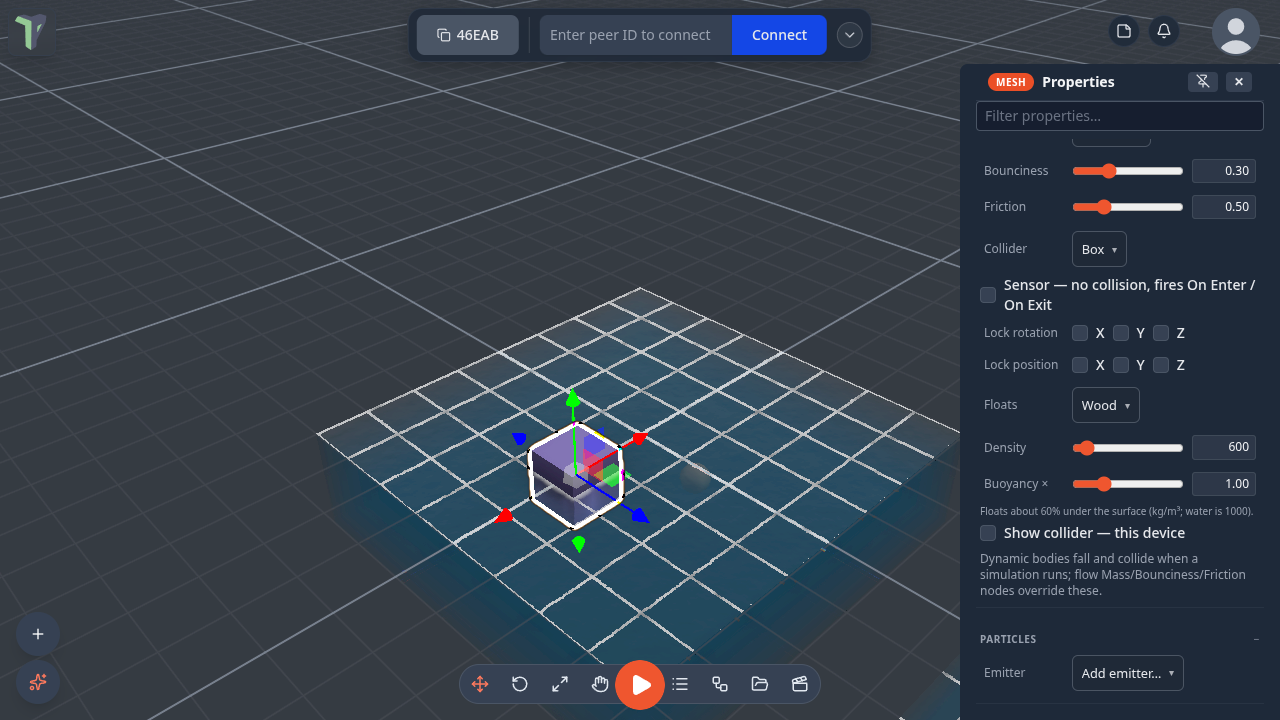

Select the object and open Properties ▸ Physics (Body: Dynamic) ▸ Floats:

Floats	Density (kg/m³)	Behaves like
Auto (default)	500	floats half under
Foam	150	rides high on the surface
Cork	240	floats, mostly above
Wood	600	floats a little more than half under
Ice	917	floats almost all under
Rubber	1100	sinks slowly
Stone · Metal	2500 · 7800	sinks
From mass ÷ volume	from the object	works it out from the object's mass and size
Off	—	ignores water

Density (kg/m³; water is 1000) and Buoyancy × fine-tune it, and the hint under the sliders says how deep it will sit — Floats about 60% under the surface. How deep something floats depends on its density, not its mass, so a light and a heavy crate of the same wood float equally.

The peer running the simulation computes the floating, and everyone sees the same motion; each player draws the ripples for themselves. Water volumes are in the Water collision group, which is why things fall into them instead of landing on top. For a tank of particle fluid you can pour, see Fluid tank.

Joints

Joints tie two objects together so they move as one, or hinge around an axis. Select exactly two objects, then use their right-click menu ▸ Physics:

Entry	Joint
Weld together	A fixed joint — the two move as one rigid body during simulations.
Hinge (X / Y / Z axis)	A revolute joint about the first object's local axis, anchored at the second object — a door, a lever, a wheel.
Detach joints (N)	Removes joints touching the selection.

Joints replicate to everyone, undo as a single step, persist in saved scenes and .tpscene files, and are removed automatically if one of their objects is deleted. Hinges can also be motorized programmatically (for example by the drivable-car module) to spin under power, or driven to an angle to steer.

Duplicating jointed objects

Since 1.27, duplicating both objects of a joint (select both, Ctrl+D) copies the joint onto the copies too. Duplicating only one end does not: the copy is a free object, as before. One Ctrl+Z removes the copied joint, the next one the copies.

Breaking a joint during a simulation

Since 1.27 Detach joints while a simulation runs breaks the joint for real: the objects come apart at once (before, the joint held until you restarted the simulation), sparks fly from where it was attached, and any particle emitter set to On impact on either object fires. Every player sees it. Detaching while no simulation runs is quiet.

How it stays in sync

Physics uses an authoritative model: the peer who starts the run is the only one stepping the simulation, and it broadcasts the resulting motion. Everyone else just watches.

• One run at a time — if someone else is simulating, your play button is disabled and a toast names who's running it.
• Two people pressing play at the same moment both start a run for an instant; the one with the lower peer id keeps it, and the other sees "‹name› is simulating too — handing the physics over (lower id keeps it)".
• Someone joining mid-run is told the run is happening, so their grab and their knock work from the first second instead of after the next restart.
• Watching peers interpolate. The simulating peer sends about ten poses a second per moving body; everyone else eases between them instead of snapping, so a fast throw looks smooth rather than stepped. It costs nothing on the wire and never changes where an object ends up — only how it gets there.
• A throw you make is applied exactly. When you are not the peer running the simulation, releasing an object sends the release velocity itself, so the object leaves your hand immediately and in the direction you threw it rather than being reconstructed from position updates.
• The sim uses a fixed timestep, so it runs at the same speed for everyone even when a browser tab is throttled in the background.
• Kinematic platforms that are themselves animated by the flow graph need no extra traffic — every peer computes their motion identically.

Tip

Build a Rube-Goldberg contraption: weld a few blocks into a paddle, hinge it to a post, give a ball Mass and Bounciness, then press P and watch it play out the same on every screen.
